SAFETY BEFORE EVERYTHING ELSE



REFRIGERATED CONTAINERS ARE POTENTIALLY DANGEROUS.

TRAINING

Minimal staff training is required for normal use. Your TITAN contacts will be happy to assist with this.

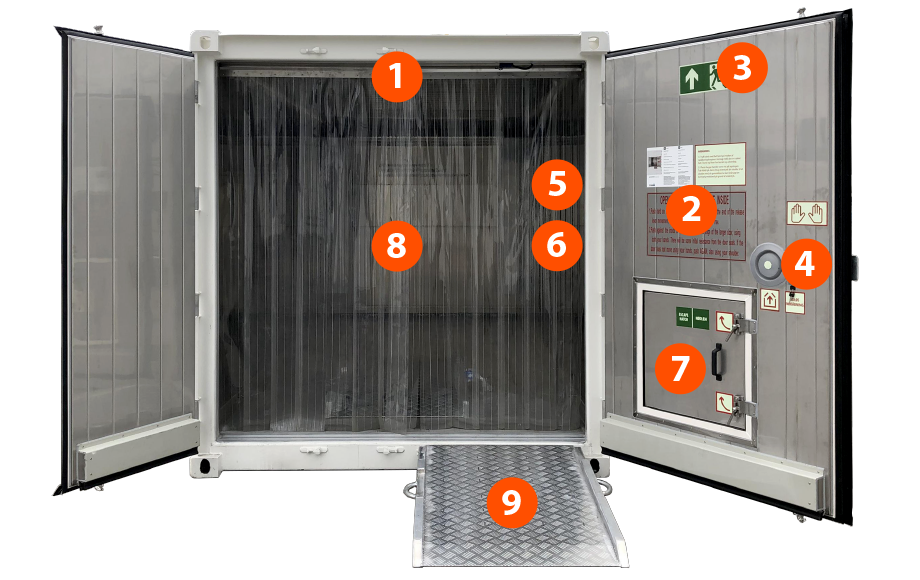

Interior


1. Interior lighting
2. User guidelines
3. Day glow emergency labelling
4. Internal door release
5. Alarm switch
6. Light Switch
7. Escape hatch
8. Air curtains
9. Ramp

REFRIGERATION MACHINE

Please be aware of all warnings. There is no risk when using the control box keypad provided the control box is undamaged and closed.

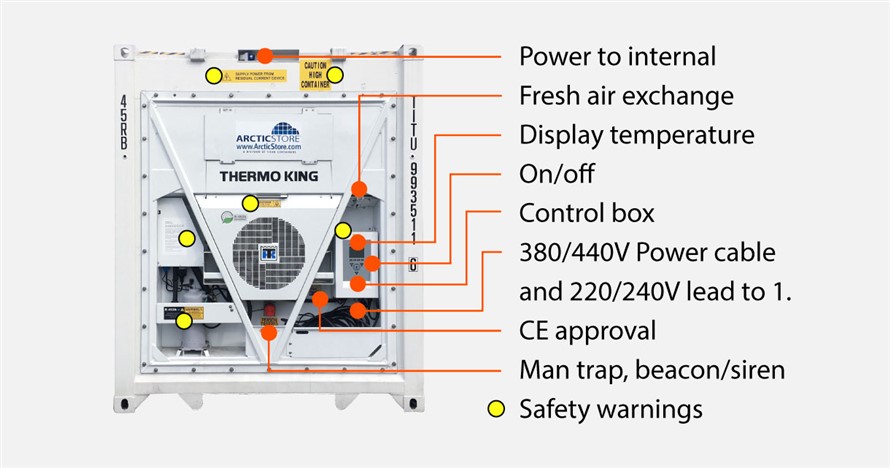

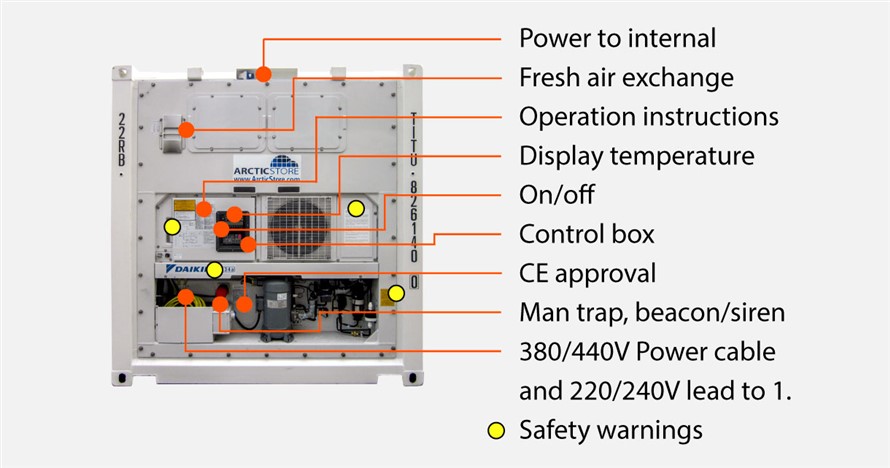

MACHINE SAFETY MARKINGS AND FEATURES



DAIKIN LXE10

DAIKIN LXE10

THERMO KING MAGNUM PLUS

THERMO KING MAGNUM PLUS

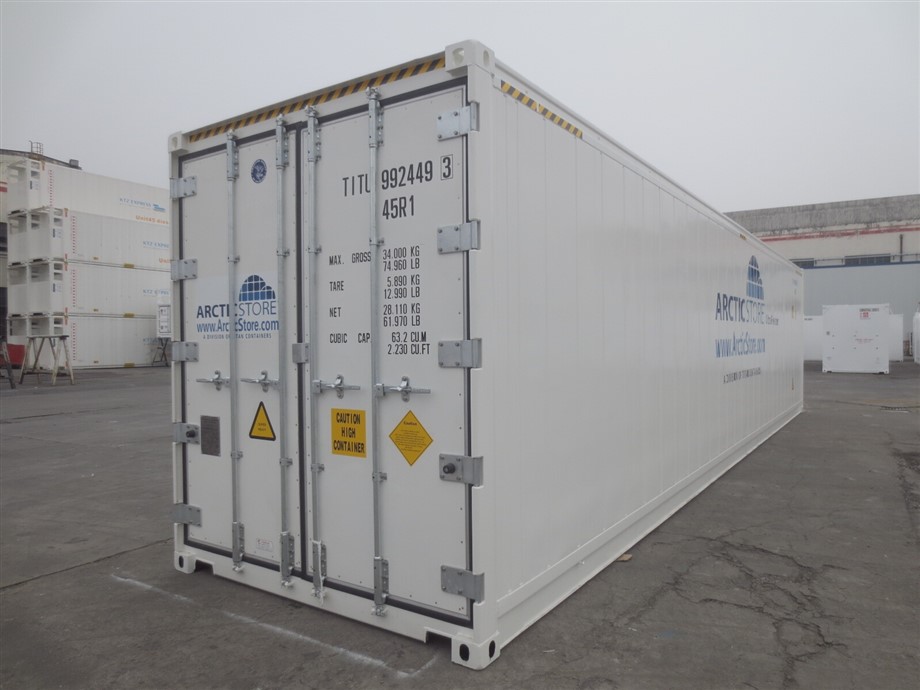

STANDARD REEFER CONTAINER DOORS

These cannot be opened from the inside!

The container insulation makes them almost soundproof!


ALWAYS CHECK there is NO ONE in the container before closing the doors!





FOR USER INFORMATION NOTICES



IMPORTANT INFORMATION


CONTAINERS DOORS OUTSIDE



WHEN USING THIS CONTAINER PLEASE ALWAYS HAVE REGARD FOR YOUR OWN AND OTHERS HEALTH & SAFETY. CHECK THERE IS NOBODY IN THE CONTAINER BEFORE CLOSING THE DOOR.

IN CASE OF BREAKDOWN PLEASE LEAVE THE DOORS CLOSED UNLESS YOU INTEND TO EMPTY THE CONTAINER. THE INSULATION VALUE OF THE CONTAINER IS SUFFICIENT, WHILSTEVER THE DOORS REMAIN CLOSED, TO AVOID MAJOR CHANGE IN TEMPERATURE FOR MANY HOURS.

RAMP: PLACE THE RAMP CORRECTLY IN THE RETAINERS BENEATH THE DOOR FOR SAFE OPERATION. IF YOU DO NOT INTEND TO USE THE RAMP SUPPLIED PLEASE STORE IT RESPONSIBLY. LOST RAMPS ARE EXPENSIVE TO REPLACE.

CONTAINER DOORS: THIS CONTAINER HAS EASY OPENING DOORS THAT CAN ALSO BE OPENED FROM THE INSIDE. SEE INSTRUCTIONS ON THE DOOR INTERIOR.

IF DOORS ARE DIFFICULT TO OPERATE PLEASE NEVER USE FORCE, CROWBARS OR SUCHLIKE TO OPEN DOORS. PLEASE CONTACT TITAN CONTAINERS IN ORDER WE CAN ASSIST YOU.

AIR CURTAIN: THIS CONTAINER WAS BUILT WITH SLIDING AIR CURTAINS TO REDUCE HEAT GAIN/FRESH AIR EXCHANGE WHEN THE DOOR IS OPEN. THE DOOR SHOULD STILL BE CLOSED WHENEVER POSSIBLE.

TITAN CONTAINERS

WALL PANEL BESIDE ALARM AND LIGHT SWITCHES



WHEN USING THIS CONTAINER PLEASE ALWAYS HAVE REGARD FOR YOUR OWN AND OTHERS HEALTH & SAFETY.

THE CONTAINER: DO NOT DRILL HOLES OR MAKE OTHER MODIFICATIONS IN/TO ANY PART OF THE CONTAINER INSIDE OR OUTSIDE.

LIGHTING AND ALARMS: PLEASE REPLACE ANY DEFECTIVE LIGHT BULBS/TUBES. THE ALARM SHOULD BE TESTED IN ACCORDANCE WITH HEALTH & SAFETY GUIDELINES/REGULATIONS.

AIR FLOW: IN ORDER TO MAINTAIN EVEN TEMPERATURE IN THE CONTAINER IT IS ESSENTIAL THAT THERE IS GOOD AIR FLOW FROM THE BOTTOM OF THE MACHINE. DO NOT BLOCK THE AIR FLOW.

FROST & ICE: ICE SHOULD NOT FORM INSIDE THE CONTAINER. ANY ICE ON THE FLOOR SHOULD BE REMOVED. CHECK THAT THE DRAINS ARE CLEAR AND FUNCTIONAL. ICE BUILD UP ON THE CEILING CAN OCCUR IF YOU LEAVE THE DOORS OPEN FOR LONGER PERIODS. ICE SHOULD ONLY EVER BE REMOVED RESPONSIBLY WITH WARM AIR AND/OR WARM WATER.

CLEANLINESS & HYGIENE: KEEP THE CONTAINER CLEAN AND TIDY AT ALL TIMES.

SPECIAL FEATURES: IF YOU NEED ANY OTHER SPECIAL FEATURES PLEASE CONTACT TITAN CONTAINERS.

TITAN CONTAINERS

ON THE MACHINERY



WHEN USING THIS CONTAINER PLEASE ALWAYS HAVE REGARD FOR YOUR OWN AND OTHERS HEALTH & SAFETY. CAUTION – HIGH VOLTAGE!

THE MACHINERY: THIS IS A COMPLICATED MACHINE & UNDER WARRANTY. PLEASE DO NOT ALLOW UNAUTHORISED INDIVIDUALS TO SERVICE OR TRY TO REPAIR. UNDER NO CIRCUMSTANCES ARE ANY MODIFICATIONS TO BE MADE. ANY ALARMS ARE TO BE REPORTED PROMPTLY TO TITAN CONTAINERS. 24/7 CONTACT DETAILS HAVE BEEN SUPPLIED/ARE AVAILABLE ON WWW.CONTAINERS.COM.

DE-FROST: THIS IS AUTOMATIC. WHEN IN THE DE-FROST MODE FANS DO NOT RUN & THE TEMPERATURE INSIDE THE CONTAINER WILL BE UNAFFECTED. MANUAL DE-FROST IS AVAILABLE ON DEMAND. FOR OPTIMAL EFFECT THERE SHOULD BE NO RESIDUAL ICE AFTER DE-FROST.

FRESH AIR EXCHANGE: FOR FRESH FRUIT, VEGETABLES, FLOWERS & PLANTS THE AIR INSIDE THE CONTAINER CAN BE EXCHANGED FOR IMPROVED STORAGE.

EXTRA SENSORS: PLEASE CONTACT TITAN CONTAINERS FOR SPECIFIC INSTRUCTIONS/ADVICE.

POWER CABLE/PLUG: ANY DAMAGE TO THE POWER CABLE OR PLUG MUST BE ATTENDED TO. DO NOT CONNECT EXTENSION LEADS WITHOUT THE APPROVAL OF TITAN CONTAINERS.

TITAN CONTAINERS
